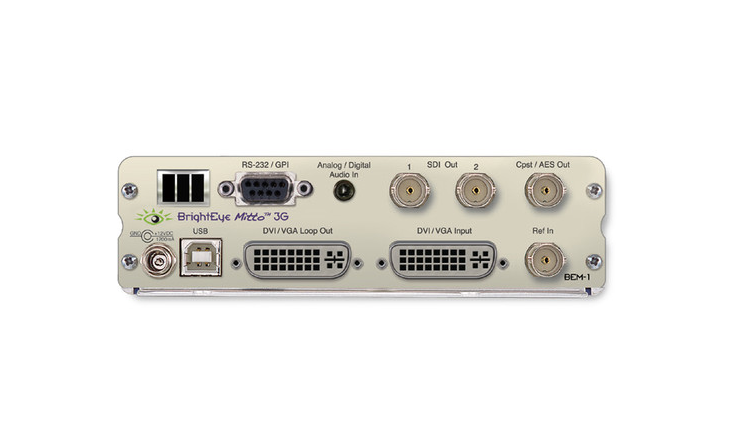

The 3G is a scan converter from Ensemble Designs that converts DVI video input into 3G/HD/SD formats, while also allowing the user to select which part of the screen to output. VGA and HDMI input are also supported, but require the use of additional adapters; this unit comes with two VGA to DVI adapters. Analog audio input is supported via a 3.5mm socket, and audio output can be embedded onto the SDI outputs.

The BEM-1-H in conjunction with the included BrightEye Software for Mac and Windows allows computer video to be used for the most demanding applications including broadcast, high-end military, medical, classroom, church, and corporate events. Even a small part of the screen, such as a Skype window, can be selected with a mouse and converted to full-screen HD. Resize the selection window by clicking and dragging with your mouse. From your desktop, you have intuitive control over video and audio parameters. The BEM-1-H provides the functionality and control to operate as a router or switcher.

HDCP supported

Converts DVI input to SDI and HD-SDI video output

Users can select specific areas of the video input to send to the output

Supports VGA and HDMI I/O with optional adapters

Includes two (2) DVI to VGA adapters

Auto-senses DVI or VGA
